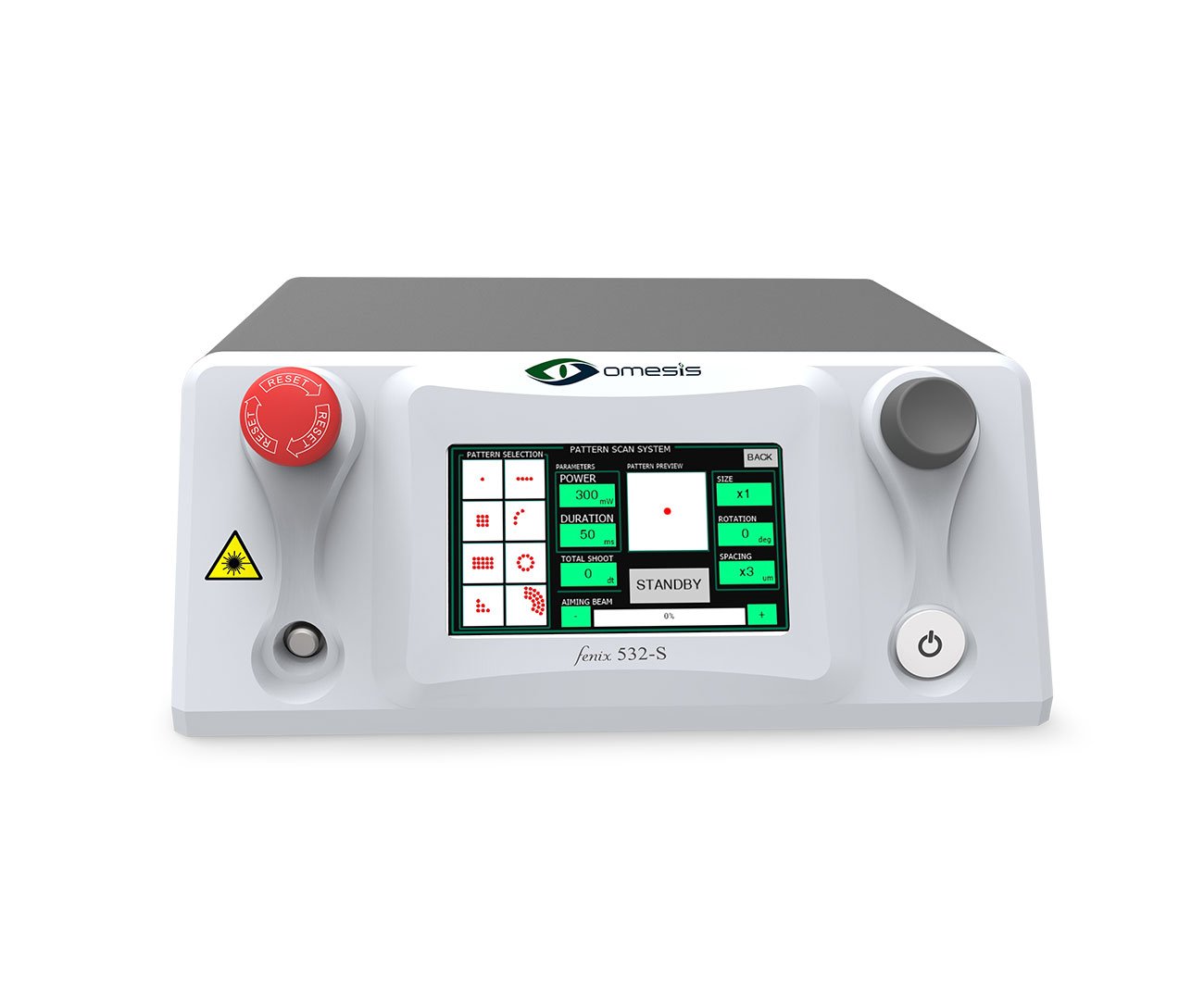

Fenix 532-S Green Laser Single

Technical Specification

Laser type

Diode Pumped Thin Disk Laser

Wavelenght

532nm

Laser output

3W (Software limited 1.5W for safety requirements)

Power stability (rms)

< 3 %

Operation modes

CW, Pulsed

Duration

10ms to 3000ms

Interval – pulse time

10ms to 3000ms

Power increments

10mW

Aiming beam

640nm visible low power laser (≤3mW)

Aiming beam increment

%2-100

Laser cooling

Air-TEC cooling system with silent fan

Fiber connector

Special Fenix endolaser probe connection

Fiber eccentricity

≤ 10μ

Numerical aperture

≥0,11

Input power

100-240 Volt AC 50/60Hz T 2.0 A fused

Dimensions

278mm x 217mm x 106mm (wxhxd)

Weight

3.7 kg

Storage conditions

Temperature: -20°C+70°C Relative humidity: 0...90% no condansation

Operation conditions

Temperature: +5°C+40°C Relative humidity: <90% no condansation

Laser Class
