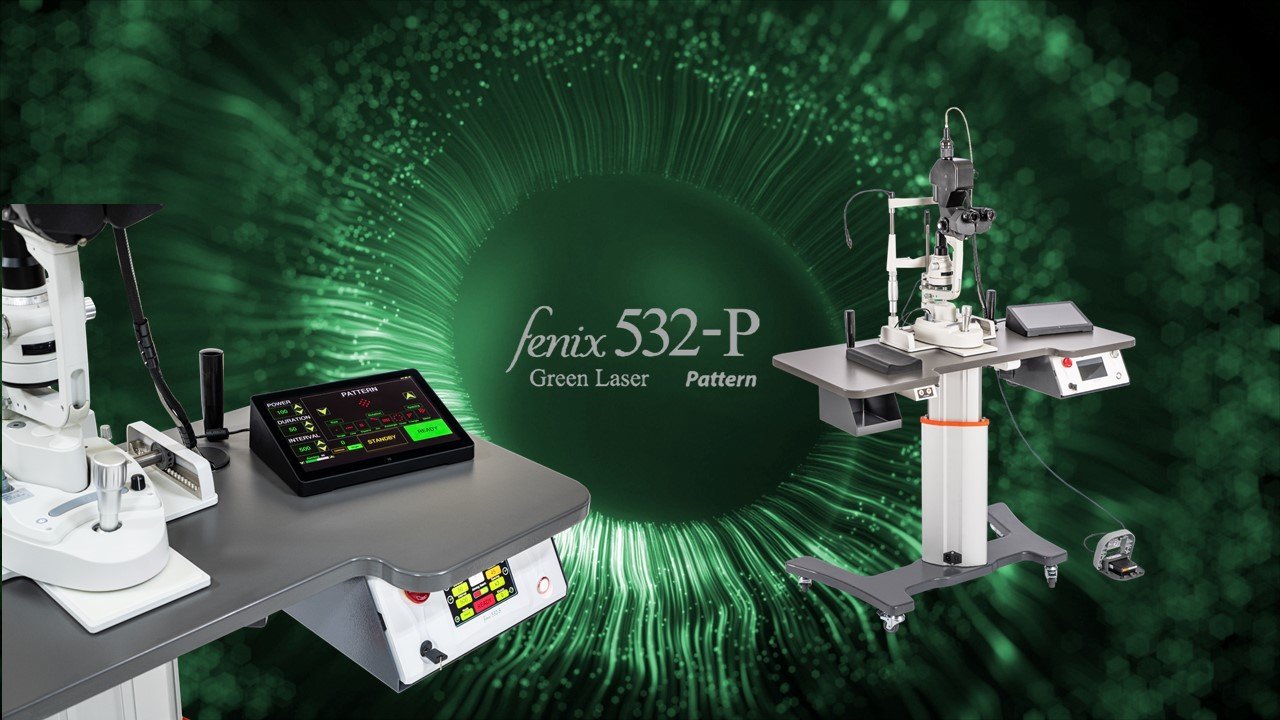

Fenix 532-P Green Laser Pattern
Technical Specification
Slit projections
1.16X
Slit width (setting continuous)
0-14mm
Slit lenght (setting continuous)
1.8-13mm
Slit lenght (max)
14mm
Apertures
14, 9, 5.5, 0.3 mm
Filters
Blue, Red, Green (Ref free)
Light diffuser
Light Diffuser
Background light
Only with digital vision HR
Slit rotation
±90° continuous, on the TABO system
Slit angle
0° horizontal
Rotation interval of the slit projection
±90°, angular scale, referance on 0°
Working distance
68mm
Voltage
15V DC 1A
Light source
White LED
Brightness
248000 LUX continuous adjustment
Microscope
5X
Microscope type
Galileian convergent with magnification change system
Microscope eyepiece convergence angle
6°
Microscope eyepiece
12,5X
Microscope eyepiece adjustment
±8 D.
Microscope magnifications
6X, 10X, 16X, 25X, 40X
Microscope corresponding real magnifications
5,6X, 8,5X, 14,8X, 25,6X 39,3X
Microscope field of view
41mm to 5,7mm
Microscope interpupillary distance
50mm to 80mm
Microscope barrier Filter
Yellow
Spot shapes
Many different size and angle scanning shapes: Single Spot, Line Scanning, Square Scanning, Quarter Circle Scanning, Rectangle Scanning, Full Circle Scanning, Triangle Scanning, Arc Scanning
Spot size options
00 μ, 150 μ, 200 μ, 300 μ, 400 μ, 500 μ
Spot spacing
x0.5, x1.0, x1.5, x2.0, x2.5, x3.0
Shoot counter
Total laser shoot counter
Dimensions (HxWxD)
440x313x335mm
Weight
7kg
Technical Specification
Wavelenght
532nm
Laser output
3W (Software limited 1.5W for safety requirements)
Power stability (rms)
< 3 %
Operation modes
CW, Pulsed
Duration
10ms to 3000ms / Pattern 10ms to 50ms / SemiPattern 10ms 3000ms
Interval – pulse time
10ms to 3000ms / Pattern 500ms to 3000ms / SemiPattern 10ms to 3000ms
Power increments
10mW
Aiming beam
640nm visible low power laser (≤3mW)
Aiming beam increment
%2-100
Laser cooling
Air-TEC cooling system with silent fan
Fiber connector
Special Fenix endolaser probe connection
Fiber eccentricity
≤ 10μ
Numerical aperture
≥0,11
Input power
100-240 Volt AC 50/60Hz T 2.0 A fused
Dimensions
278mm x 217mm x 106mm (wxhxd)
Weight
3.7 kg
Storage conditions
Temperature: -20°C+70°C Relative humidity: 0...90% no condansation
Operation conditions
Temperature: +5°C+40°C Relative humidity: <90% no condansation
Laser Class
4
